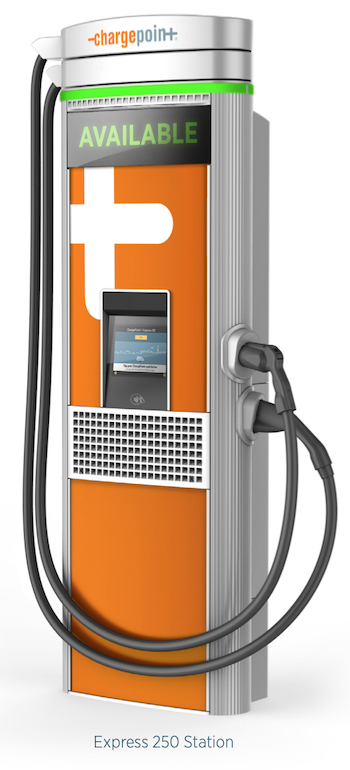

Express 250
.png)
Specifications and Ordering Information
Ordering Information
The order codes below represent specific product configurations. Other product options are available. Please contact ChargePoint Sales for information and order codes.
Hardware
| Description |
Order Code |
| Model |
Express 250 Station (50 kW) includes 2x Power Modules, 1x CCS1 cable, 1x CHAdeMO cable |
CPE250C-500-CCS1-CHD |
| |
Express 250 Station (62.5 kW) includes 2x Power Modules, 1x CCS1 cable, 1x CHAdeMO cable |
CPE250C-625-CCS1-CHD |
| Option |
Other cable combinations are available using CCS1, CCS2 and CHAdeMO connectors. |
Please contact ChargePoint Sales |
Cloud Plans and Software
| Description |
Order Code |
| ChargePoint Cloud Plan |
Please contact ChargePoint sales |
| ChargePoint Assure — Prepaid Assure Plan for one Power Module. Express 250 requires 2x EXPRESS-ASSUREn to cover the two Power Modules and the CPE250 station. |
EXPRESS-ASSUREn1 |
| ChargePoint Assure — Assure Plan for one Power Module and invoiced annually. Express 250 requires 2x EXPRESS- ASSUREn to cover the two Power Modules and the CPE250 station. |
EXPRESS-ASSUREn- COMMIT1 |
| Software upgrade token for Express 250 to increase max power from 50 kW to 62.5 kW |
CPE250C-625-UPGRADE |
| Station Activation and Configuration |
CPSUPPORT-ACTIVE |
All CPE250 stations require a cloud plan.
1 Substitute desired years of service (1, 2, 3, 4, or 5 years) for n
Order Code Examples
| If ordering this... |
...then order code is |
| Express 250 Station (50 kW) includes 2x Power Modules, 1x CCS1 cable, 1x CHAdeMO cable (NA) |
CPE250C-500-CCS1-CHD |
| Express 250 Station (50 kW) includes 2x Power Modules, 1x CCS2 cable, 1x CHAdeMO cable (EU) |
CPE250C-500-CCS2-CHD |
| 3 years of prepaid Assure coverage upon successful site validation. Assure covers Power Modules & station. Express 250 requires 2x EXPRESS-ASSURE3 for its 2 Power Modules. |
2 x EXPRESS-ASSUREn3 |
| Station Activation and Configuration |
CPSUPPORT-ACTIVE |
Express 250 Specifications
Station Electrical Input
| Input Rating |
480 V AC, 3-phase, 81 A, 60 Hz |
| Wiring |
3 conductors (L1, L2, L3) and Ground |
Station Electrical Input
| Max Output Power |
62.5 kW |
| Output Voltage, Charging |
200 V – 1000 V DC |
| Max Output Current |
156 A kW |
| Max Modules per Station |
2 |
Power Module
| Max Output Power per Module |
31.25 kW |
| Max Output Current per Module |
78 A |
Station Functional Interfaces
| Max Connector Types per Station |
Up to 3 different connector types per station |
| Supported Connector Types |
CHAdeMO, CCS1 (SAE J1772TM Combo), CCS2 (IEC 61851-23) |
| Cable Length |
4,4 m (14.5 ft) horizontal reach with cable management |
| Driver Interaction Display |
Full-color 10-inch LCD display for driver interaction |
| Top Display |
Full-color 20-inch LED display for notifications |
| Authentication |
RFID: NEMA, ISO15693, ISO 14443, NFC (Android, iOS) Plug and Charge: IEC 15118-1 Remote: Mobile and in vehicle (if supported by vehicle) |
Measurement & Connectivity Features
| Power Measurement Accuracy |
+/- 1% from 10% to full scale |
| Power Report/Store Interval |
10 seconds |
| Local Area Network |
2.4 GHz and 5 GHz WiFi (802.11 b/g/n) |
| Wide Area Network |
GSN, CDMA, and LTE |
Energy Management Features
| Dynamic Power Management |
Allows a fixed maximum power output per station or lets the system dynamically manage the power distribution per station |
| Power Module Energy Balancing |
Balances the number of hours of operation of each module and optimizes power module usage |
| Remote Energy Management |
Manage output power via the ChargePoint Admin Portal, API, and Open ADR 2.0b VEN |
Safety and Operational Ratings
| Vehicle Safety Communication |
CHAdeMO – JEVS G104 over CAN, CCS1 – SAE J1772 over PLC and CCS2 — IEC 61851-23 |
| Plug-out Detection |
Power terminated per JEVS G104 (CHAdeMO), SAE J2931 (CCS1) and IEC 61851-23 (CCS2) specification |
| Station Enclosure Rating |
Type 3R, IP 44 |
| Safety Compliance |
For U.S., complies with UL 2202, UL 2231-1, UL 2231-2.
For Europe, complies with: IEC 62196, IEC 61851 |
| Station Surge Protection |
Tested to IEC 6100-4-5, Level 5 (6 kV @ 3000 A). In geographic areas subject to frequent thunder storms, supplemental surge protection at the service panel is recommended. |
| EMC Compliance |
U.S.: FCC part 15 Class A; EU: EN55011, EN55022 and IEC61000-4 |
| Power Conversion Efficiency |
96% |
| Power Factor |
0.99 |
| Harmonics |
iTHD < 5% (Complies with IEEE 519 Requirements) |
| Power Module Cooling |
Liquid Cooling Technology |
| Operational Altitude |
<3000 m (<9800 ft) |
| Operating Temperature |
-30° C to +50° C (-22° F to +122° F) |
| Storage Temperature |
-40° C to +50° C (-40° F to +122° F) |
| Operating Humidity |
Up to 95% @ +50° C (+122° F) non-condensing |
Generic Specifications
| Station Dimensions |
2230 mm x 712 mm x 420 mm (7 ft 4 in x 2 ft 4 in x 1 ft 4 in) |
| Station Weight (without Modules) |
250 kg (551 lb) |
| Station Dimensions |
760 mm x 430 mm x 130 mm (2 ft 6 in x 1 ft 5 in x 5 in) |
| Power Module Weight |
38 kg (84 lb) |
ChargePoint, Inc. reserves the right to alter product offerings and specifications at any time without notice, and is not responsible for typographical or graphical errors that may appear in this document.
Power Module Output Characteristic
31.25kW
Single Station Configuration
